Network Ceiling Speaker, 10W, Ethernet, Microphone
- Zenitel Audio Presence – crystal clear audio
- Steel fire dome
- 10W Class D, built-in amplifier
- 96 dB SPL (1m)
- Built in Microphone
- Ideal for Micro Zone PA and systems that require a limited number of speakers
- Each speaker is individually addressable and monitored
- ONVIF Compatible
- Ideal for speakers installed in remote locations, e.g. roads and railways
- Remote software upgrade and configuration
- Relay output for remote control, e.g. doors, signal lamps, gates
- Powered from the IP network cable using Power over Ethernet (PoE)
- Ideal for Building Security, Infrastructure and Industrial projects
ELSIR-10CM Ceiling Speaker: Powerful, Discreet, and Advanced Audio Solution
The ELSIR-10CM Ceiling Speaker is a state-of-the-art audio device, designed to deliver exceptional sound quality in a compact and discreet form. With advanced features and an efficient design, it’s the perfect choice for providing audio in indoor environments, such as offices, retail spaces, and public venues.
Key Features and Design
- High-Performance Audio:
- Powered by a 10W Class D amplifier, the ELSIR-10CM harnesses the full potential of Power over Ethernet (PoE) technology.
- Delivers sound output up to 96dB SPL (1m), ensuring clear and powerful audio, dependent on signal input.
- Sleek and Discreet Installation:
- Designed for flush mounting in ceiling cutouts, tiles, or plasterboard for an unobtrusive appearance.
- Ideal for indoor environments where subtlety and aesthetics are important.
- Integrated Microphone for Enhanced Functionality:
- Enables advanced features, including:
- Self-Checking: Continuously monitors speaker functionality.
- Automatic Volume Control: Adjusts audio levels based on ambient noise for optimal clarity.
- Ambient Listening: Allows environmental audio monitoring.
- Two-Way Communication: Facilitates clear and responsive speech capabilities.
- Enables advanced features, including:
Efficient and Scalable IP-Based System
- Eliminates Central Amplifier Units:
- With the amplifier integrated directly into the speaker, there’s no need for traditional speaker loops, simplifying installation and reducing costs.
- Individual Monitoring and Control:
- Each speaker is individually addressable and monitored via the IP network, offering unprecedented control and scalability.
- Easy to expand by simply adding more speakers to the network.
- Flexible Zoning Across Networks:
- Speakers can be grouped into zones that extend beyond local networks, even spanning the Internet, for highly versatile audio distribution.
Reliable and Intelligent Operation
- Advanced Supervision and Diagnostics:
- Built-in speaker line tests detect faults in the network or electronics, ensuring maximum system availability.
- Reports status to a central unit or third-party management systems via SNMP or Syslog.
- Auto-Discovery and Talkback:
- The speaker is auto-discoverable, simplifying configuration.
- Supports ONVIF for direct communication with Video Management Systems (VMS) for synchronized audio-visual integration.
- Built-In Web Interface:
- Access status information, controls, and firmware updates directly through a user-friendly web interface.
- Broadcast Logging:
- Logs and stores detailed broadcast reports for accountability and system analysis.
Why Choose the ELSIR-10CM Ceiling Speaker?
The combination of powerful performance, modern design, and intelligent features makes the ELSIR-10CM Ceiling Speaker a top choice for advanced audio solutions. Whether you’re upgrading an existing system or building a new one, this speaker ensures reliable performance, scalability, and seamless integration with modern IP networks.
Upgrade Your Audio System Today.
Specifications
| GENERAL | |
| Max. SPL (1m) | 96 dB |
| Codecs | G.711, G.722 |
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz |

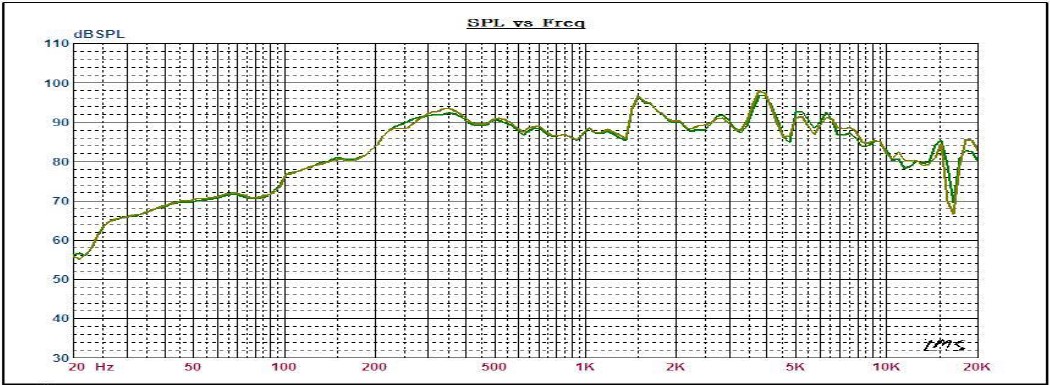

| Frequency range (speaker driver) | 250 – 10000 Hz |
| Internal speaker amplifier | 10 W class D |
| Dimensions (diameter x depth) | 199 x 146 mm |
| Weight | 1.2 kg / 3 lbs |
| Mounting | Hooks / fasteners (included) |
| Material / Colour | Steel / RAL 9010 (white) |
| Electronics cover material | ASA (plastic) |
| IP Grade | IP-54, tested according to EN 60529 |
| Boxed Shipping weight | 1.85 kg |
| Boxed Shipping dims (Width x Height x Depth) | 230 x 230 x 180 mm |
| ENVIRONMENT AND COMPLIANCES | |
| Operating temperature range | -40° to 70° C / -40° to 158 ° F |
| Storage temperature range | -40° to 70° C / -40° to 158 ° F |
| Relative humidity | < 95% not condensing |
| EMC | CE and FCC Part 15 |
| HARDWARE | |
| Ethernet connector | 1 x RJ 45 |
| All other connectors | Tool less, spring loaded, vibration proof terminals |
| General inputs and outputs | 6 (configurable) |
| Outputs | 12mA as LED drivers |
| Change-over relay (NO+NC+COM) | Max: 250VAC/220VDC, 2A, 60W |
| Power options | PoE |
| PoE (power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) |
| Power consumption | Idle 1.8W, max 12W (depending on volume) |
| Audio line out / induction loop signal | 600 Ohm |
| NETWORKING AND PROTOCOLS | |
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, STENTOFON CCoIP® , NTP |
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) |
| Management and operation | HTTP/HTTPS (Web configuration) DHCP and static IP + STENTOFON Pulse™. Remote automatic software upgrade. Centralized monitoring |
| Advanced supervision functions | E.g. network test, tone test, status reports |
| SIP support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info) |
| DTMF support | RFC 2833, 2976 (SIP info) |
| OTHER SPECIFICATIONS | |
| System boot time | Under 10 seconds |
| IP address information | Speaks IP address after system boot (requires connected loudspeaker) |
| Country of manufacture | Norway |
| Encapsulation material | ASA plastic |
| DIN-rail clips | Wago 209 (included) |
Dimensions
